Installation

Setup Backend

1. Setup WSL2

open Powershell and run
wsl --install
Enable WSL: open Powershell as Admin and run
dism.exe /online /enable-feature /featurename:Microsoft-Windows-Subsystem-Linux /all /norestart
Enable Virtual Maschine: open Powershell as Admin and run
dism.exe /online /enable-feature /featurename:VirtualMachinePlatform /all /norestart
reboot your PC
download and install WSL2
set WSL2 as defaul: open Powershell as Admin and run
wsl --set-default-version 2

2. Install Linux Distribution

Open Microsoft Store and install a Linux distribution (f.e. Ubuntu 20.04.4 LTS)
Follow Instructions for your Linux distribution to set it up
it is possible to install ansible with apt (sudo apt install ansible), but its recommended to install it with python like in the official documentation
make sure to have python with pip installed
python3 -m pip -V
then install ansible with python
python3 -m pip install --user ansible
ansible --version
note that ansible is not added to PATH
add it to path or use it directly with /home/<user>/.local/bin/ansible

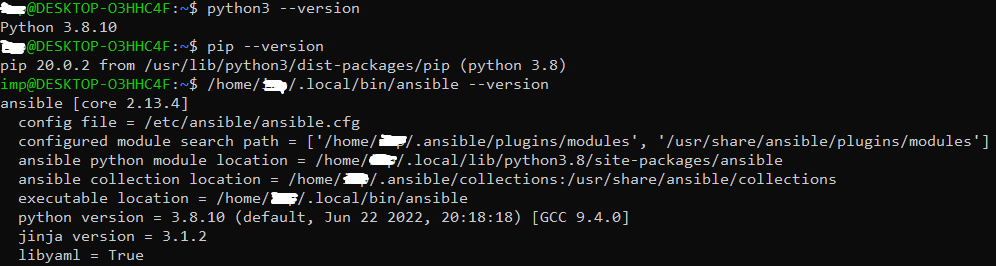

it should look like this on your linux vm

3. Install Docker for Windows

download and install Docker
make sure “Install required Windows Components for WSL2” is checked
in Docker Desktop go to Settings > General and make sure “Use the WSL 2 based engine” is checked

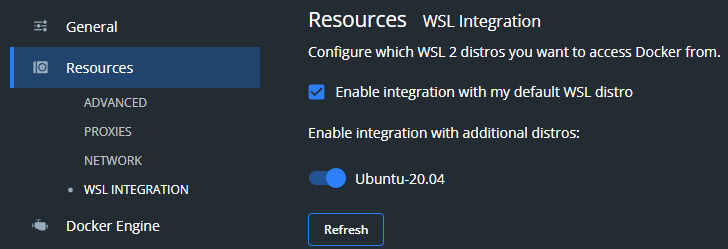

go to Settings > Resource > WSL Integration and enable integration for your linux distribution

if it doesnt run correctly, you might need to enable virtualisation in BIOS-Settings. Check your Motherboard Manufacturers Documentation to enable it.

4. Install Node.js

install Node.js atleast version 14. but its good to install the latest stable LTS version
open Powershell as Admin and run:
corepack enable
to verify installation run:
node --version and yarn --version

5. Deploy

localhost_ip: <your localhost_ip>
segmensation_root_path: <path_segmensation>
traefik_root_path: <path_traefik>

segmensation_root_path: /mnt/c/Users/<user>/Desktop/srv/
traefik_root_path: /mnt/c/Users/<user>/Desktop/srv/traefik

in the ansible folder on linux run:
ansible-playbook -i inventory -l "localhost" playbook.yml -u <user> --ask-pass --ask-become-pass --ask-vault-pass
- “user” is your linux user name
- “sshpw” is an ssh key of your maschine (not necessary)
- “becomepw” is your sudo password from your linux
- “vaultpw” is in the KeePass database

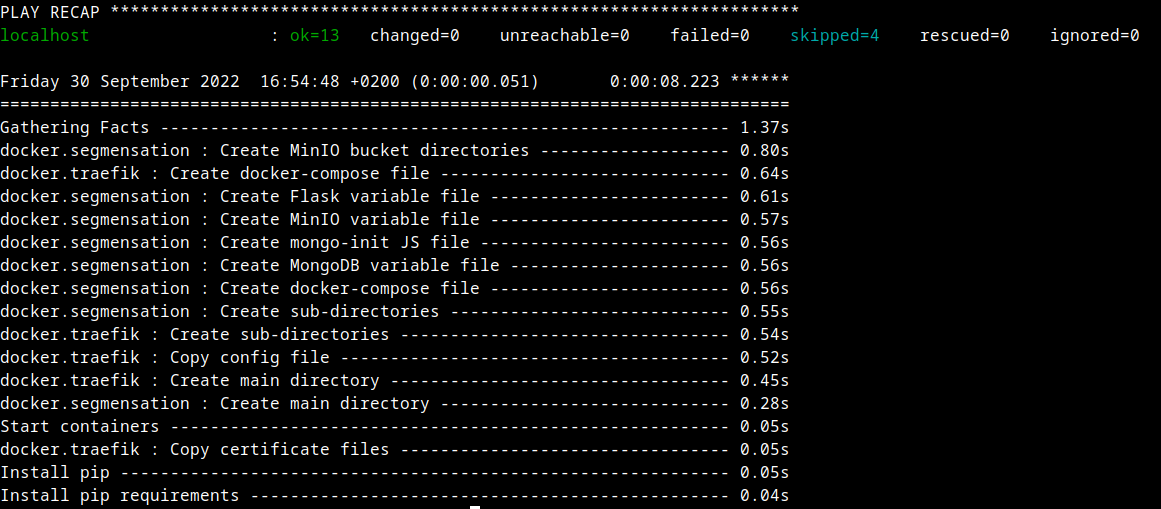

now you should have a segmensation and traefik folder with docker-compose files in it

6. Run

Note

For building and testing your own code, replace this step with the steps in Setting up Segmensation for development.

1. Install Docker

sudo pacman -S docker docker-compose (pacman is the package manager in Archlinux, use your package manager)
Reboot
to start docker service sudo systemctl start docker.service
to start docker service on every boot sudo systemctl enable docker.service
add user to docker group sudo usermod -aG docker $USER
Reboot or Re-Login

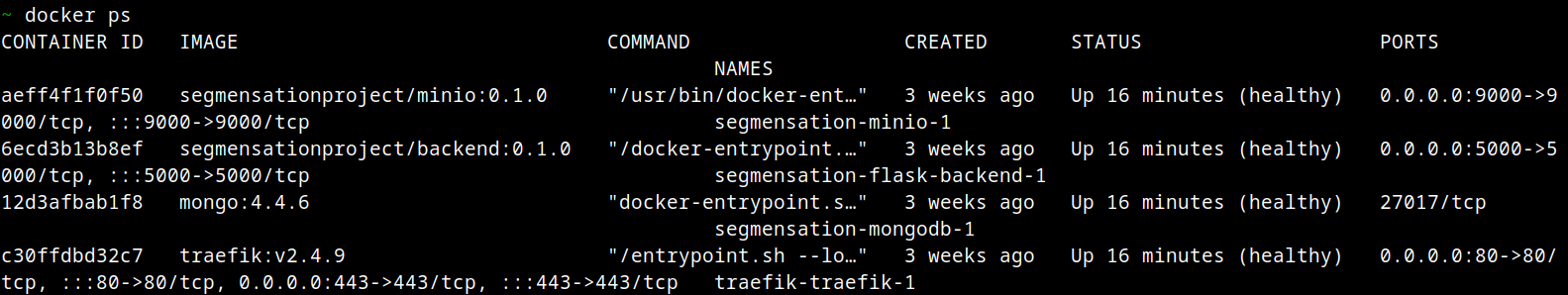

docker run hello-world

2. Install Ansible

3. Install Node.js

4. Deploy

localhost_ip: <your localhost_ip>
segmensation_root_path: <path_segmensation>
traefik_root_path: <path_traefik>

segmensation_root_path: /home/<user>/srv/
traefik_root_path: /home/<user>/srv/traefik

in the ansible folder on linux run:
ansible-playbook -i inventory -l "localhost" playbook.yml -u user --ask-pass --ask-become-pass --ask-vault-pass
- user is your linux user name
- sshpw is an ssh key of your maschine (not necessary)
- becomepw is your sudo password from your linux
- vaultpw is in the KeePass database
if you havent added ansible to you path use:
/home/<user>/.local/bin/ansible-playbook -i inventory -l "localhost" playbook.yml -u user --ask-pass --ask-become-pass --ask-vault-pass

now you should have traefik and segmensation folders with docker-compose files in it

5. Run

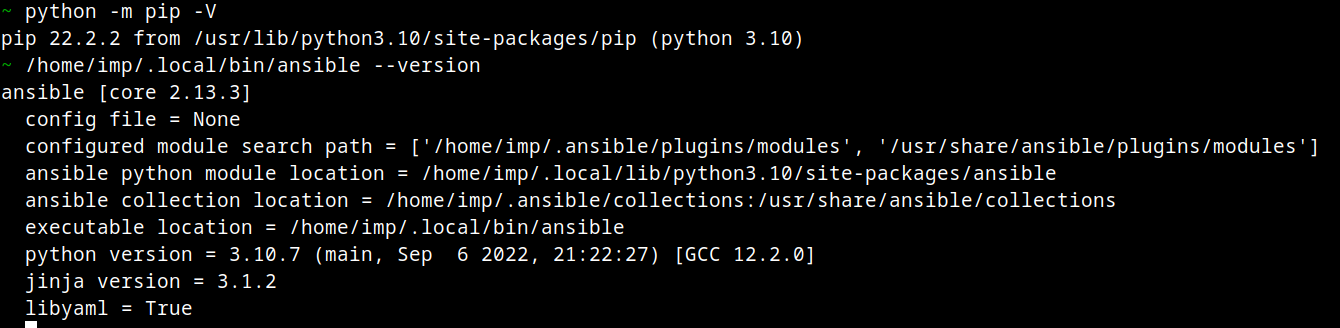

make sure python3 and pip is installed properly
python3 -m pip -V
install ansible
python3 -m pip install --user ansible
make sure to have docker(v20.x.x) and docker-compose(v2.x.x) installed
docker --version and docker-compose --version
clone this repository SegInfrastructure
edit in /ansible/inventory 2nd line: ansible_host=<server_ip> to your servers ip
go into /ansible/ and run
ansible-playbook -i inventory -l "prod_server" playbook.yml -u <user> --ask-pass --ask-become-pass --ask-vault-pass
- user user to who you connected over ssh
- sshpw the ssh password to your user
- becomepw is your sudo password from your user
- vaultpw is in the KeePass database
if you havent added ansible to you path use:
/home/<user>/.local/bin/ansible-playbook -i inventory -l "prod_server" playbook.yml -u user --ask-pass --ask-become-pass --ask-vault-pass

clone this repository SegApp
set ELECTRON_WEBPACK_APP_API_URL="http://localhost:5000" in segmansation-app/.env
or ELECTRON_WEBPACK_APP_API_URL="http://<server_ip>:5000" if Backend is running on a server
follow README there to set it up

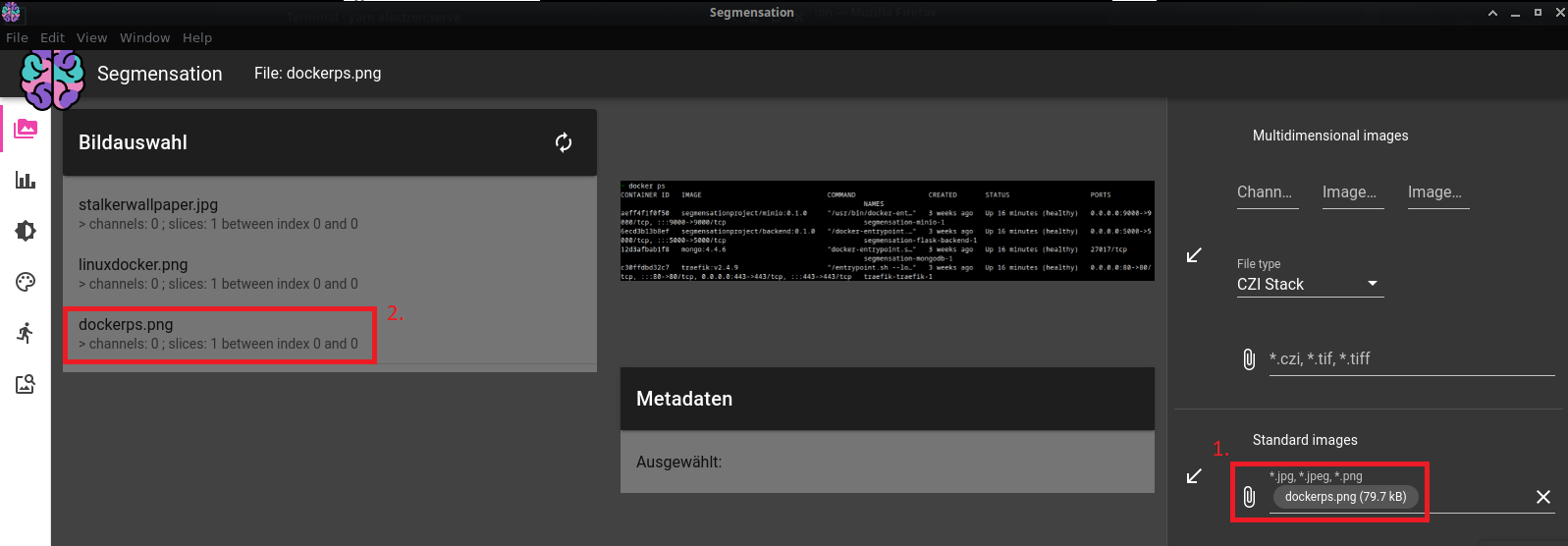

to verify everything is working correctly, firstly upload any image, then wait until its processed and finally click on the uploaded image to show it

if you cant connect the App to the Infrastructure, make sure you did all the steps correctly and not using outdated versions
f.e. the “” in ELECTRON_WEBPACK_APP_API_URL="http://localhost:5000" is mandatory
if you run a firewall, make sure that docker haves rules for it, so that the App can connect to docker
sudo ufw allow from 172.18.0.0/16 to any port 443
sudo ufw allow from 172.18.0.0/16 to any port 80
